Specilize in Water Treatment & Disinfection Technology
8 Years
| Ask Lasest Price | |
| Brand Name : | Geemblue |
| Model Number : | GBI-200-NACLO |
| Certification : | ISO9001 CE |
| Price : | USD 12000-15000 / set |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 10 set / month |
| Delivery Time : | 40-45 work days |

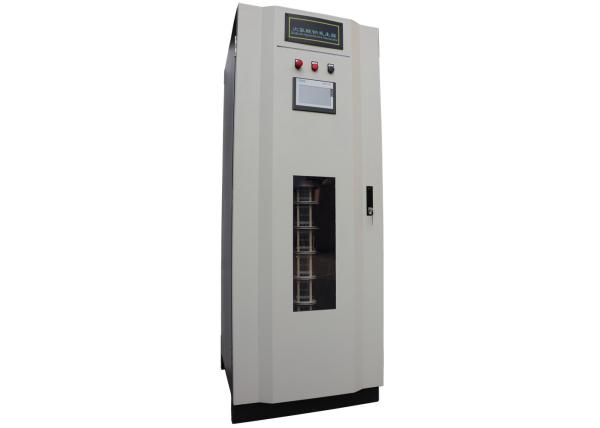

4000 m3 / day On Site Sodium Hypochlorite Generator for Water Disinfection
About sodium hypochlorite generation
On-site sodium hypochlorite generation systems operate by electrolyzing a brine solution. The systems produce sodium hypochlorite onsite and on demand, at a cost that is significantly lower than purchased hypochlorite. Unlike purchased hypochlorite, the production on demand means that the hypochlorite does not degrade, subsequently there is no reduction of product strength. The Geemblue On-site Chlorination System product line is designed to accommodate applications ranging from potable water disinfection and leisure to marine and off-shore.
System Flow Chart
① Influent water passes through a water softener to reduce hardness therefore reducing the scaling of electrodes and lengthening the cleaning time
② Salt is dissolved by softened water into saturated brine in the tank.
③ The saturated brine will be diluted into 2.5%-3%, then pass through the electrolytic cell and finally be electrolyzed into 0.8% solution of sodium hypochlorite.
④ The 0.8% hypochlorite solution flows into a storage tank. Hydrogen, the only byproduct of the process, is safely vented to the atmosphere.
⑤ The residual chlorine detector will monitor residual chlorine and return feedback to the PLC center. According to preset standards, the PLC Center will adjust the speed of the dosing pump.
Feature and Benefit
♫ Eliminates hazards associated with gaseous Cl2. More stable than bulk sodium hypochlorite.
♫ Safe and clean on-site production.
♫ Safe and economical using only salt, water and electricity.
♫ Eliminate transportation and handling of gaseous chlorine or bulk
sodium hypochlorite.
♫ Skid mounted, fully integrated systems.
♫ Automatic, local or remote operation.
♫ Easily integrates with all chlorine analyzers and dose control
systems.
♫ Stable and repeatable levels of free chlorine at the end of your
distribution system.
Comparative advantages of chloridose
| Disinfection system | Source of raw materials | Handling of product | Self-life of product | Operation & maintenance | Cost of consumable |
| Chloride hypochlorite | Only Edible salt | No transportation & storage Easy handling | Produced and dosed on site. No storage. No loss of chlorine | Very Easy | Very Economical |
| Chlorine gas | Dependent on Supplier uneconomical for transport | Transportation and Handling is hazardous | Stable | Difficult | Most Economical |
| Bleaching powder | Dependent on supplier | Handling and storage is inconvenient messy | Highly unstable Rapidly losses Chlorine on storage | Inconvenient Difficult & Messy | Expensive |
| Commercial sodium hypochlorite | Dependent on supplier & Uneconomical for Transport | Handling and storage is inconvenient | Unstable & losses chlorine on storage | Fairly Easy | Most Expensive. |
Specification
| Model | chlorine capacity | Water treatment capacity | concentration | flow rate | salt conversion | energy conversion |
| GBI-50-NACLO | 50 g / h | 1000 ton / day | 5000~7000 ppm | 10 L / h | 3.5 kg / kg Cl2 | 4 kwh / kg Cl2 |
| GBI-100-NACLO | 100 g / h | 2000 ton / day | 5000~7000 ppm | 20 L / h | 3.5 kg / kg Cl2 | 4 kwh / kg Cl2 |
| GBI-200-NACLO | 200 g / h | 4000 ton / day | 5000~7000 ppm | 40 L / h | 3.5 kg / kg Cl2 | 4 kwh / kg Cl2 |
| GBI-300-NACLO | 300 g / h | 6000 ton / day | 5000~7000 ppm | 60 L / h | 3.5 kg / kg Cl2 | 4 kwh / kg Cl2 |
| GBI-400-NACLO | 400 g / h | 8000 ton / day | 5000~7000 ppm | 80 L / h | 3.5 kg / kg Cl2 | 4 kwh / kg Cl2 |
|
|
