    Integrated Design Sodium Hypochlorite Equipment 40L/H For Swimming Pool

    Ask Lasest Price
    Brand Name : Geemblue
    Model Number : GBA-200-NACLO
    Certification : ISO9001 CE
    Price : USD 8000 ~10000 / set
    Supply Ability : 30 set / month
    Delivery Time : 50 work days
    • Product Details
    • Company Profile

    Integrated Design Sodium Hypochlorite Equipment 40L/H For Swimming Pool

    Low Running Cost Integrated Design Sodium Hypochlorite Generator for Swimming Pool


    Brief Introduction


    It is a proven technology to convert salt, by means of electrolysis into sodium hypochlorite using sodium hypochlorite generator ( electro chlorinator system).


    A diluted brine solution is fed through electrolytic cell. When a low voltage DC current is applied, electrolysis occurs and sodium hypochlorite is generated instantaneously. NaClO is generated between 0.2% and 0.8% depending on the application. Below 1% is classified as a non-hazardous chemical although still a very effective disinfectant. The only by-product, hydrogen, is safely vented into the atmosphere.


    An important use for hypochlorite is as a sanitizer or disinfectant. Both of these uses rely on the hypochlorite's ability to destroy microorganisms. The same oxidative mechanism responsible for hypochlorite's bleaching ability also makes it an effective germicide.


    One marked advantage of hypochlorite for these applications is the fact that it, in addition to working quickly, rapidly breaks down to innocuous compounds. For this reason it is useful in chlorination of tap water & sewage effluents, swimming pool water, food processing, etc


    Advantage for Geemblue system


    Safe Operation

    Geemblue system is water treatment system free from the threat of personal injury associated with storage of hazardous chemicals. The elimination of risk from such potential major hazards is one of the fundamental advantages of Geemblue systems, by providing greater safety to plant personnel and to the general public, and assured a safe, long term supply. Plant personnel operate in a safe work environment.


    Significant cost savings

    High cost purchased chemicals are replaced with low cost salt and electricity.


    Easily maintained

    Simple change of any part, Replacement parts are stocked at our units.


    Flexible operation

    The design allows each installation to meet variation in utility.


    Geemblue system has been designed to meet all of these features and yet requires only minimal consumable of salt and electricity


    Main components:


    Electrolytic Cell

    Pure Titanium (TA1) electrode; Ru-Ir oxide fine nano coating; Electrode spacing 2mm; Bipolar electrode structure
    Transparent cell; High strength organic glass material, anti-pressure>1.2 Mpa
    Power Supply

    High frequency ,stability and constant current rectifier, electrical conversion efficiency over 90%

    Multiple protection for input over/under voltage, and output overvoltage / overcurrent / short circuit protection as well as overheat protection


    Specifications
    ModelChlorine outputNaClO concentrationGenerator flowPower requirementScale cleaning typeFeed water requirement
    GBA-200-NACLO200 g/h5000 ppm40 L/h220 VPolarity Reverse> 2.5 bar



    Electrolytic Cell

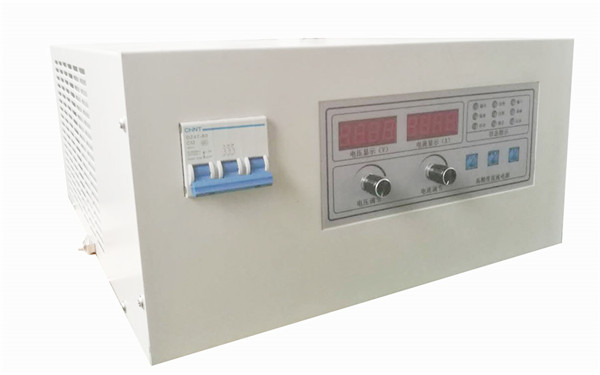

    Power supply
