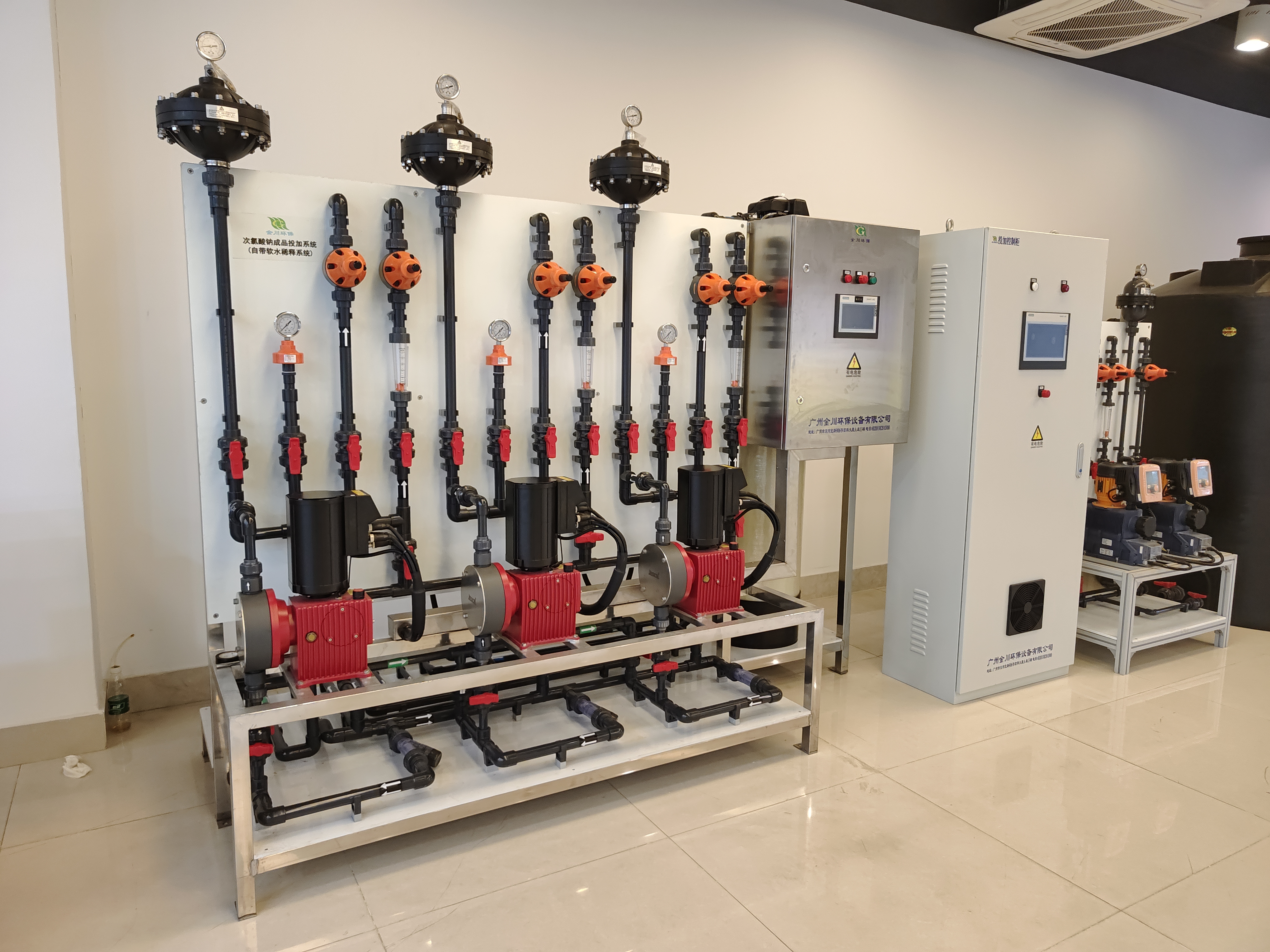

Compact Type Sodium Hypochlorite Generation System Onsite For Drinking Water
Brief Introduction
TheGEEMBLUE EC system generates a 0.8 % sodium hypochlorite solution through the electrolysis of brine, consuming only water, salt and electricity. By producing hypochlorite on-site and on-demand, the system eliminates concerns associated with transportation and storage of chlorine gas or commercial sodium hypochlorite solutions, making it ideal for any medium to large scale application requiring chlorination.
Specification
| GTL-5000 | GTL-8000 | GTL-10000 | GTL-15000 | GTL-20000 | |
|---|---|---|---|---|---|
| Chlorine Capacity | 5Kg/hr | 8Kg/hr | 10Kg/hr | 15Kg/hr | 20Kg/hr |
| Water treatment Capacity(At 1ppm dosing) | 100mld | 160MLD | 200MLD | 300MLD | 400MLD |
| Salt Consumption | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 | 3.5kg/kg Cl2 |
| Power Consumption | 4.0kw/ kg Cl2 | 4.0kw/ kg Cl2 | 4.0kw/ kg Cl2 | 4.0kw/ kg Cl2 | 4.0kw/ kg Cl2 |
| Concentration of HYPO | 5000~8000ppm | 5000~8000ppm | 5000~8000ppm | 5000~8000ppm | 5000~8000ppm |
| Production Flow Rate | 625~1000 L/hr | 1000~1600L/hr | 1250~2000L/hr | 1875~3000L/hr | 2500~4000L/hr |
Advantage
Eliminate delivery & handling of hazardous chemicals
Handle only salt
Generate on site for on-demand or residual storage
No exhaust gases as with conventional sodium hypochlorite solutions
in dosing pumps
Eliminate injection point scaling associated with commercial sodium
and calcium hypochlorite
Considerable Health & Safety benefit to operators
Application
Chlorination of potable water supplies
Food washing / processing treatment
Dairies / Breweries cleaning in place (CIP)
Cooling tower biocide treatment
Secondary disinfection
Industrial chlorination treatments
Swimming & Spa pool disinfection
|
|
