    hypo generation brine electrolysis electrochlorination system for waste water plant

    Ask Lasest Price
    Brand Name : geemblue
    Model Number : GBI-800-NACLO
    Certification : ISO9001 CE
    Price : USD 26000 ~30000 /set
    Supply Ability : 10 set/ month
    Delivery Time : 50 works dat
    • Product Details
    • Company Profile

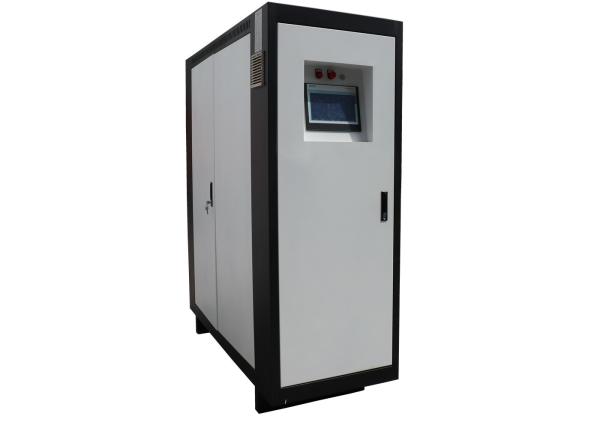

    hypo generation brine electrolysis electrochlorination system for waste water plant

    Brief Introduction


    It is a proven technology to convert ordinary salt (common salt) or sea water, by means of electrolysis into sodium hypochlorite (ELECTRO HYPO) using GEEMBLUE sodium hypochlorite generators ( electro chlorination system). It is applied onsite, No chemicals other than ordinary salt are used throughout the process.


    The electrolytic cell is fed a DC current from the rectifier and electrolyzes the diluted brine into sodium hypochlorite solution. Chlorine evolves at the anode surface, while hydrogen and hydroxide evolves at the cathode surface. The secondary reaction of chlorine, sodium and the hydroxyl ion nets sodium hypochlorite (chlorine bleach) at a 0.8% solution. Below 1%, hypo is classified as a non-hazardous chemical although still a very effective disinfectant. The only by-product, hydrogen, is safely vented into the atmosphere.


    Specification


    GBA-600-NACLOGBA-700-NACLOGBA-800-NACLOGBA-900-NACLOGBS-1000-NACLO
    Chlorine Capacity600g/hr700g/hr800g/hr900g/hr1000g/hr
    Water treatment Capacity(At 1ppm dosing)12MLD14MLD16MLD18MLD20MLD
    Salt Consumption3.5kg/kg Cl23.5kg/kg Cl23.5kg/kg Cl23.5kg/kg Cl23.5kg/kg Cl2
    Power Consumption4.0kw/ kg Cl24.0kw/ kg Cl24.0kw/ kg Cl24.0kw/ kg Cl24.0kw/ kg Cl2
    Concentration of HYPO8000ppm8000ppm8000ppm8000ppm8000ppm
    Production Flow Rate75 L/hr87.5 L/hr100 L/hr112.5 L/hr125 L/hr

    Advantage


    1.High safety level

    Food grade standard raw material added (salt only, no other chemical required), safety solution produced (0.5~0.8% sodium hypochlorite which is known as none-hazardous chemical), multi-protection of the equipment for the electrolytic cell, rectifier, solution storage , hydrogen exhaust and dosing


    2.Low running cost

    To produce 1 kg available chlorine, only cost 3.5kg salt, 4kwh DC power


    3.Full automatic operation

    Full computer program and central control by PLC, the staff can operate after simple tranning


    4.Accuracy dosing control

    Closed loop control system, ensure accuracy residual chlorine in water and make use of every drop of solution


    5.High performance electrolytic cell

    High strength organic glass transparency cell body, anti pressure 1.2mpa

    Pure titanium electrode with Ru-Ir fine nano coating, which is up to 20 layers

    bipolar design electrode structure, 20% energy saving


    6.High frequency ,stability and constant current rectifier

    Electrical conversion efficiency over 90%
    Multiple protection for input over/under voltage, and output overvoltage / overcurrent / short circuit protection as well as overheat protection


    Application


    drinking water plant

    waste water plant

    RO plant

    swimming pool

    cooling tower

    food&beverage processing

    Aquiculture poultry farming
