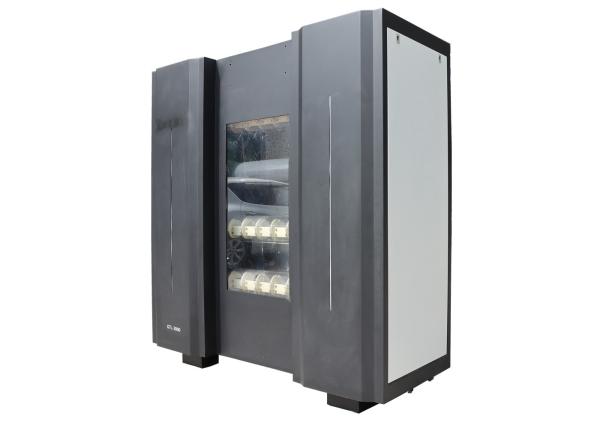

80000 ton / day On Site Sodium Hypochlorite Generation Systems for Cooling Tower
Sodium hypochlorite generator summary:
1. Sodium hypochlorite generation
Sodium hypochlorite generation system is producing sodium hypochlorite through brine electrolysis, and the whole system is a combination of Softening unit, Filtration unit, Salt dissolving unit, Online proportioning unit, electrolytic unit, rectifier power supply, automatic control systems, storage and dosing unit, etc.
2. The Applications of sodium hypochlorite disinfection
Sodium hypochlorite, a strong oxidant with strong bactericidal and bleaching power, have been widely used in drinking water disinfection, food processing, industrial or power system recycling water disinfection, sewage treatment and swimming pool water treatment.
Main Components
Salt feeder
Automatic delivery salt to dissolving tank, thus reduce workload of worker
Softener
Remove Calcium and Magnesium ion in tap water, thus reduce the scaling in electrolytic cell
Brine Proportioning Unit
To proportioning saturated brine with softened water into 2.5~3% diluted brine
All we selected are international brand like “MILTONROY / PROMINENT / SEKO / GRUNDFOS” Pumps which ensure stable performance and long service life
Main Features
1) The only raw material: salt or sea water which is safety and
convenient for transportation and storage, without any volatility
and toxicity.
2) Bipolar electrode connection mode, reduced the heat yield, as
well greatly reduced the production of sodium hypochlorite salt
consumption and power consumption
3) Salt consumption< 3.5kg / kg Cl2 (National standard 4.5);
power consumption < 4kw /kg Cl2 (National standard 4.5)
4) Siemens PLC and touch screen, full automatic control
5) Cathode life >20 years; Machine life >15 years
Specifications:
| Model | FAC capacity | Water treatment capacity | Salt consumption | Power consumption | FAC concentration | Dimensions |
| GBS-4K-NACLO | 4 kg / h | 80000 ton / day | 3.5 kg / kg Cl2 | 4 kwh / kg Cl2 | 7000~9000 ppm | 2000*800*1600 mm |
Project Reference
| Water flow(MLD) | Capacity | Chlorine concentration(ppm) | Dosing rate(ppm) | Control | Salt consumption | Energy consumption | |
| Hunan waste water plant disinfection | 180 | 15kg/h*3 (two duty one standby) | 8000 | 3 | PLC control/full automatic | 3.5 kg/kg Cl2 | 4kwh/kg Cl2 |
| Malaysia Water plant disinfection | 20 | 2kg/h*2 (two duty) | 8000 | 4 | PLC control/full automatic | 3.5 kg/kg Cl2 | 4kwh/kg Cl2 |
| Indonesia Water plant disinfection | 30 | 6kg/h (one duty) | 8000 | 4 | PLC control/full automatic | 3.5 kg/kg Cl2 | 4kwh/kg Cl2 |
| Malaysia Water plant disinfection | 17 | 3kg/h*2 (one duty one standby) | 8000 | 4 | PLC control/full automatic | 3.5 kg/kg Cl2 | 4kwh/kg Cl2 |
Salt feeder
Brine Proportioning Unit
|
|
