    Cubic Welded Bipolar Electrolyzer High Electric Catalytic Property Saving Electricity

    Ask Lasest Price
    Brand Name : Geemblue
    Certification : ISO9001 CE
    Price : NEGOTIATION
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 set/month
    Delivery Time : 40 days
    • Product Details
    • Company Profile

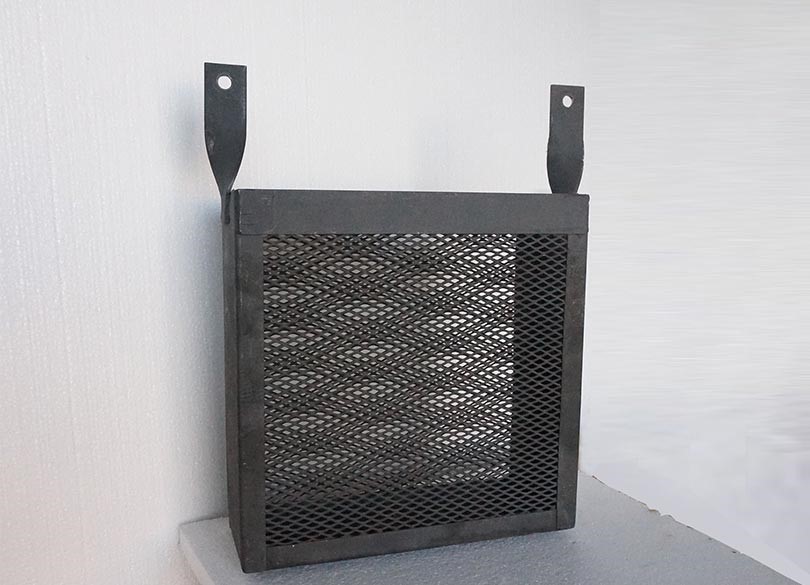

    Cubic Welded Bipolar Electrolyzer High Electric Catalytic Property Saving Electricity

    Cubic Welded Electrolytic Cell Metallurgical Electrolyzers, OEM Service


    Electrolysis electrode


    plate type electrode, the anode and cathode are all made of pure titanium TA1; the cathode is protected while the anode is at lost during electrolysis, so the surface of the anode must be coated. Anode, nano technology treatment, a coating of 20 nm precision ruthenium iridium oxides with 25 times, 20 microns thickness, which ensure long-term and stable working life. Salt water swimming pool electrolyzer electrolysis anode cell, Water electrolysis machine tubular brine electrolyzer for water treatment systems.


    Working principle


    Precise electronic equipment like mobile phones contains a certain amount of precious metals (Ag, Pt, Au). In order to recover them, other metal impurities will be removed in the first place, and then dissolved by electrolysis under strong acid conditions, then gather and collect the ions after that.


    Titanium Anode Production Process


    Titanium anode is a kind of electro-catalysis electrode in electro-chemistry, which is composed by substrate that is pure titanium and coated that is precious metal oxide.


    1. Substrate treatment:


    It needs to be treated by roughing, cleaning and removing oil, which can increase the compactness of catalytic.


    2. Brushing & Drying:


    After substrate treatment, it will be proceeded brush coated. The main coated content is platinum group metal, which is a kind of mixed solution.


    3. Heat Treatment:


    Heat treatment will be proceed after drying.


    The whole procedure need to be repeated many times. This method is better to form thin oxide catalytic that is lamellar adhere to substrate surface.


    Applications


    Electrolytic extraction of colored precious metals. Electrolytic extraction of the metal has high requirement for electrode, it requires stable anode, corrosion resistance, long-term use capability, and the electrocatalytic activity for the anode process is to reduce the overpotential and cell voltage of the anode reaction. The present niobium titanium electrode satisfies the above requirements and also has an activation effect on the anode reaction. At the same time, the addition of niobium also lengthening the service life.


    Specification


    Titanium Anode
    MaterialGr1 Titanium as substrate, mixed Ruthenium-Iridium-Titanium oxide as coating

    Coating ingredient


    RuO2+IrO2 (special ratio)
    Technologypickling, sintering, nano-coating
    Dimension & ShapeDifferent dimension is available, or according to client's drawing
    ShapeDifferent shape is available, or according to client's drawing
    Working Parameter

    Current density≤10000mA/M2

    Temperature<60°C

    PH: 1-14

    Fluoride ion concentration: <50mg/L

    Coating thickness: ≥1.0um

    Remarks

    Titanium anode also called MMO anode, DSA & Insoluble anode

    Cathode also be provided

    PackingWooden case
    MOQFlexible, sample order acceptable
