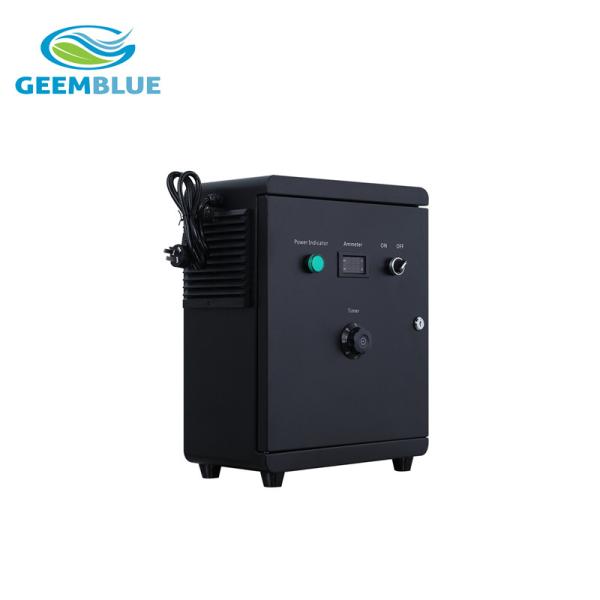

60L/H PH 7 Salt Base Portable Hypochlorous Acid Generator Manual Control

Introduction

Hypochlorous acid generator is a system which is produced by electrolysis of tap water through water purification system and is produced by a special electrolytic cell. The system produce hypochlorous acid (HCLO) with pH (5~6.5), redox potential (ORP value +750mv or more) and available chlorine (50~60mg/L), also produce sodium hydroxide (NaOH) with PH (10~12), redox potential(ORP value -800~900 mv).

Principle of electrolysis

Hypochlorous acid generator electrolyzes 0.1% of NaCl solution in a special electrolytic module. In the advanced anion membrane, the acid oxidation potential water is generated from the anode side and the alkaline reduction potential is generated from the cathode side. Most of the alkaline water will enter the anode chamber twice, and after the second electrolysis, the slightly acidic electrolytic ion water will be generated from the anode side. A small amount of alkaline water will be generated from cathode side.

The slightly acidic water (HClO) produced by electrolysis diluted brine, with high redox potential and excellent germicidal ability, and it contains no chemical additives. The slightly acidic electrolyzed water is a solution with high safety, no residue and environmentally friendly.

Applications:

• Storing and sanitation of fish and seafood at harvest.
• Dosing into the process water.
• Generating sanitized ice for storing and transporting.
• Employee hand and feet sanitation entering the facilities.
• Sanitation of processing tools and equipment.
• Sanitation of floors and food contact surfaces.
• Dislodging bioflim and sanitizing pipes and closed systems.

Specifications

Project reference:
