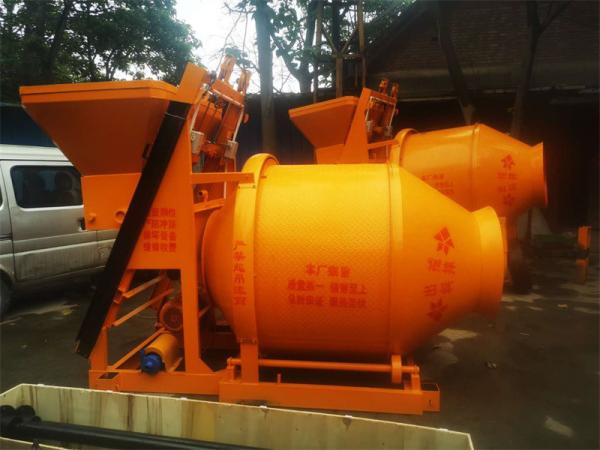

300L Engineering Construction Machinery Small Mobile Shelf Load Streel Drum Concrete Mixer
Small type mobile shelf load Streel drum concrete mixer
Mobile Portable Concrete Mixer can turn over 360 degree at both
sides when it works. The drum revolves for mixing and reverses for
discharging.
Power source: diesel and electrical engine.
Features:
1. Move the suction point from the back to the front to avoid dust
absorption. This is good for extending the service life of the
engine.
2. A water pump is added to the mobile portable cement concrete
mixer for the water circulation between the engine water tank and
radiator to keep the engine water temperature stable.
3. It has the advantages of compact structure, high reliability,
uniform mixing, large capacity, simple operation, and easy movement
between sites. The reverse roller concrete mixer is widely used in
construction sites, road and bridge works and many other
construction sites.
| Model | JZC300 |
| Outpu Capacity | 300L |
| Input Capacity | 350L |
| Production Rate | 6~8m3/h |
| Stirring drum speed | 14r/min |
| Bone feed maximum grain diameter | 60mm |
| Water supply accuracy | ≤ 2% |
| Mixing Motor | 4kw |
| Lift Motor | 4kw |
| Pump Motor | 0.55kw |
| Wheel Size | 6.5~16 |
| Weight | 1000kg |
This machine is forward-rotating mixing, reverse-rotating discharging, which can agitate plastic and semi-dry hard concrete
This machine has the advantages of balanced running, easy operation, good mixing quality and high productivity. It is matched with the feeding weighing device, which can form a medium-sized mixing station, and is used for construction sites, roads, bridges, hydropower and other projects.
|
|
