0.7-0.9 % Brine Electrochlorinator water treatment chemicals of chlorine
Product introduce

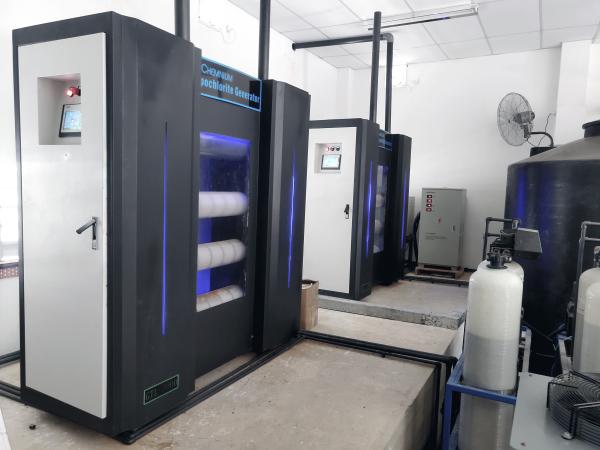

Sodium hypochlorite generator is a generator to produce sodium hypochlorite by brine or sea water electrolysis, and the whole system is a combination of softener, salt dissolving unit, brine proportion unit, control system, electrolytic unit, storage unit, dosing unit and acid washing unit. It's a system using salt as raw material to produce sodium hypochlorite liquid (0.8%) and dose into water for disinfection.
Product components
Magneto Electrolyzer
Transparent electrolytic cell, organic glass material.
TA1 titanium electrode, the anode is covered by ruthenium-iridium oxide fine nano coating which is up to 20 layers, ensure more than 5 years service life.
Bipolar electrode connection mode, reduced the heat yield, as well greatly reduced the production of sodium hypochlorite salt consumption and power consumption, plays a positive role in reducing by-product.

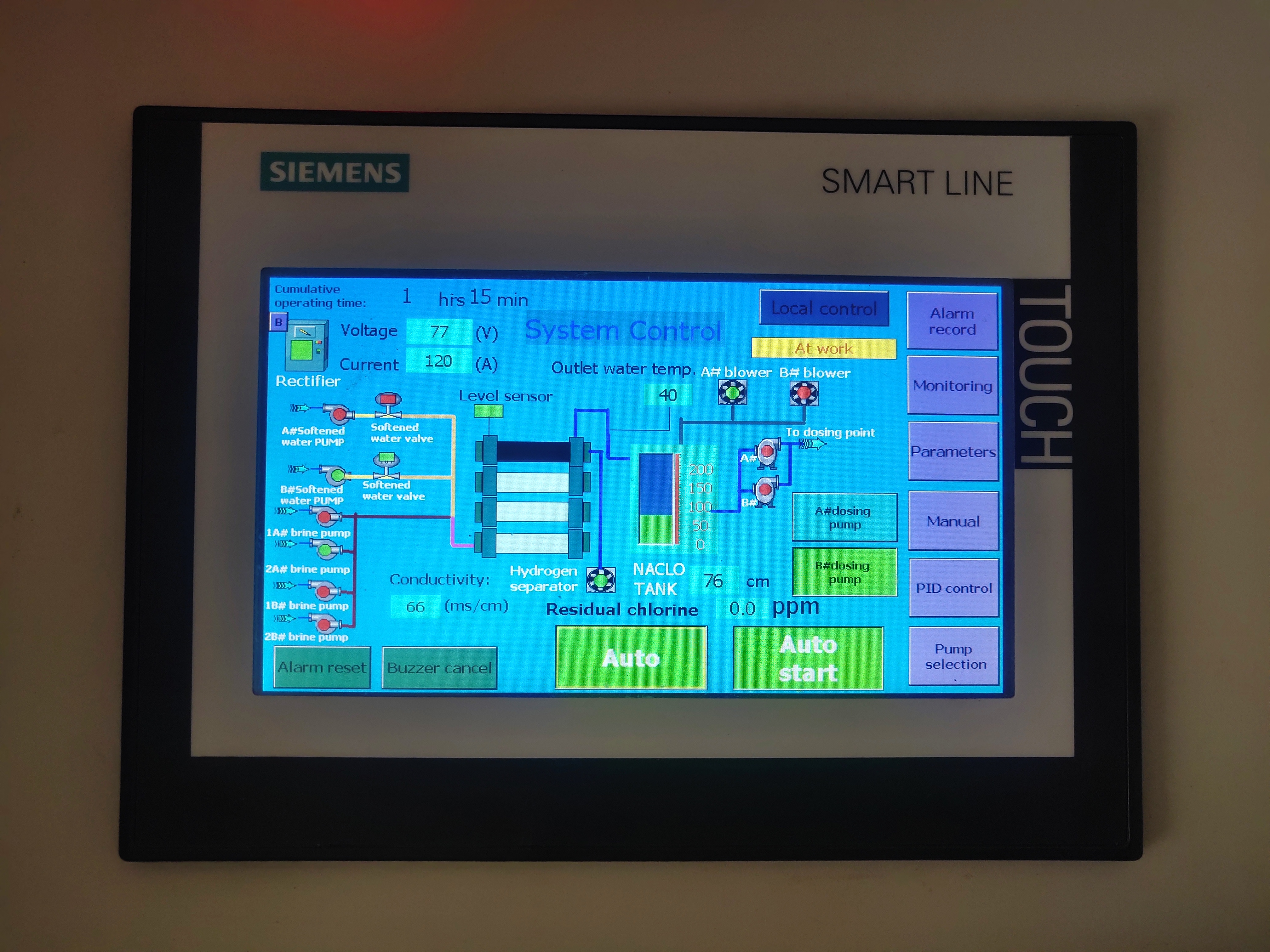

Siemens Touch Screen
All running status are shown clearly and all parameters can be adjusted directly by the touch screen.
Siemens PLC
Every step of process and protection of components is detected and controlled by the smart PLC center, safety, reliability.
Geemblue Rectifier
High frequency, stability and constant current rectifier.
Electrical conversion effciency over 90%
The rectifier have multiple protection for input over/under voltage, and output overvoltage / overcurrent / short circuit protection as well as overheat protection, ensure high reliability and security.
Seko Metering Pump
Real-time detect residual chlorine in water, thus convert to 4-20mA signal and feedback to PLC, for controling the dosing rate of dosing pump.
Advantage of Geemblue Sodium Hypochlorite Generator
Safety Raw Material Added
No chemical required, salt and water only.
No Dangerous Goods Transportation
Chlorine dioxide chemical disinfection, one of the raw material name "Hydrochloric acid" is dangerous material, which is restricetd in the purchase, storage and transportation. Another disinfection too. The on-site electrolytic sodium hypochlorite solution requires only food grade salt which is known as human body needed everyday.
Full Automatic Running
Full computer program, PLC, online chlorine analyser, ensure the residual chlorine in water and make use of every drop of liquid.
Safety Solution Produced
The final product, 0.8% sodium hypochlorite, is recognized as non-hazardous chemical.
On-site Generation And Dosing
Instead of high strength sodium hypochlorite solution which is unable to store for long time.
Low Running Cost
3.5kg salt and 4KWH energy consumption for 1kg available chlorine.
Easy Operation
Central control, able to remote control, the staff can operate after simple training.
Comparative advantages of chloridose
| Disinfection system | Source of raw materials | Handling of product | Self-life of product | Operation & maintenance | Cost of consumable |
| Chloride hypochlorite | Only Edible salt | No transportation & storage Easy handling | Produced and dosed on site. No storage. No loss of chlorine | Very Easy | Very Economical |
| Chlorine gas | Dependent on Supplier uneconomical for transport | Transportation and Handling is hazardous | Stable | Difficult | Most Economical |
| Bleaching powder | Dependent on supplier | Handling and storage is inconvenient messy | Highly unstable Rapidly losses Chlorine on storage | Inconvenient Difficult & Messy | Expensive |
| Commercial sodium hypochlorite | Dependent on supplier & Uneconomical for Transport | Handling and storage is inconvenient | Unstable & losses chlorine on storage | Fairly Easy | Most Expensive. |
|
|
