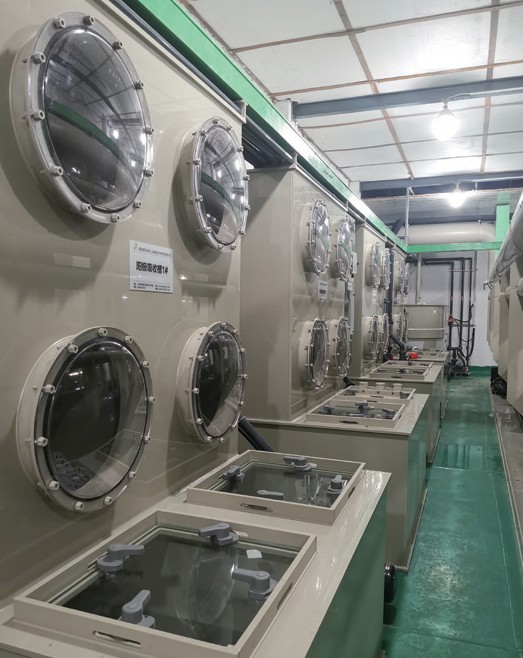

Integrated Slot-Type Waste water Treatment System
MULTIPLE SERIES CONNECTIONS: the design is modular, and multiple modules can be connected in series as required；
FLEXIBLE USAGE:explosion-proof case can be made according to requirements;
SMALL FLOOR AREA:A single module occupies a small area, with simple appearance and reserved water inlet and outlet.
Specifications:
| Equipment model | XFDM01 | XFDM02 | XFDM04 |
| Equipment dimension (L×W×H, mm) | 1094 x 794 x 1844 | 1392 x 1247 x 2048 | 1900 x 1500 x 1850 |
| Operating weight of equipment(kg) | 972 | 1947 | 650 |
| Number of modules | 1-slot 2-module | 2-slot 4-module | 4-slot 8-module |
| Anode material | BDD | ||
| Cathode material | Ti | ||
| Area of anode strip(㎡) | 0.88 | 1.75 | 3.5 |
| Treatment capacity(m³/h) | By water quality | ||
| Single-batch processing time(h) | By water quality | ||
| Design circulating flow(m³/h) | 10 | 20 | 30 |
| Head loss at design circulating flow(KPa) | 20 | 20 | 40 |
| Installed power(Kw) | 10 | 20 | 40 |
| Service power(Kw) | ≤7 | ≤12 | ≤20 |
| Current density(mA/c㎡) | ≤70(≤301 A) | ≤70(≤602 A) | ≤70(≤1204 A) |
| Maximum heating power(Kw) | 2.79 | 5.6 | 14 |
| Input voltage | AC 380 V/50 Hz | AC 380 V/50 Hz | AC 380 V/50 Hz |
| Power output | DC 500 A/20 V | DC 1000 A/20 V | DC 2000 A/20 V |
| Operating ambient temperature | 0 ℃ ~ 40 ℃ | ||
| Relative humidity | ≤90% | ||
| Installation method | Indoor | ||
| Circulating water pump | None | ||
| Pressure protection | Optional | ||
| Temperature protection | Optional | ||
| Inlet diameter | DN50 flange | DN50 flange | DN80 flange |
| Outlet diameter | DN50 flange | DN50 flange | DN80 flange |
|
|
